Product Details of Shell-type Transformer

Product Name

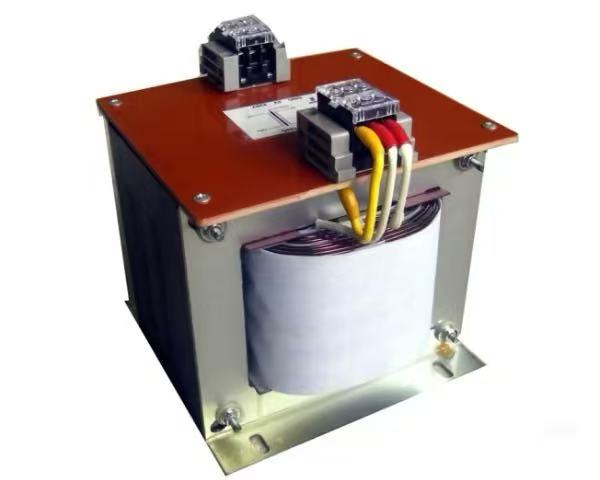

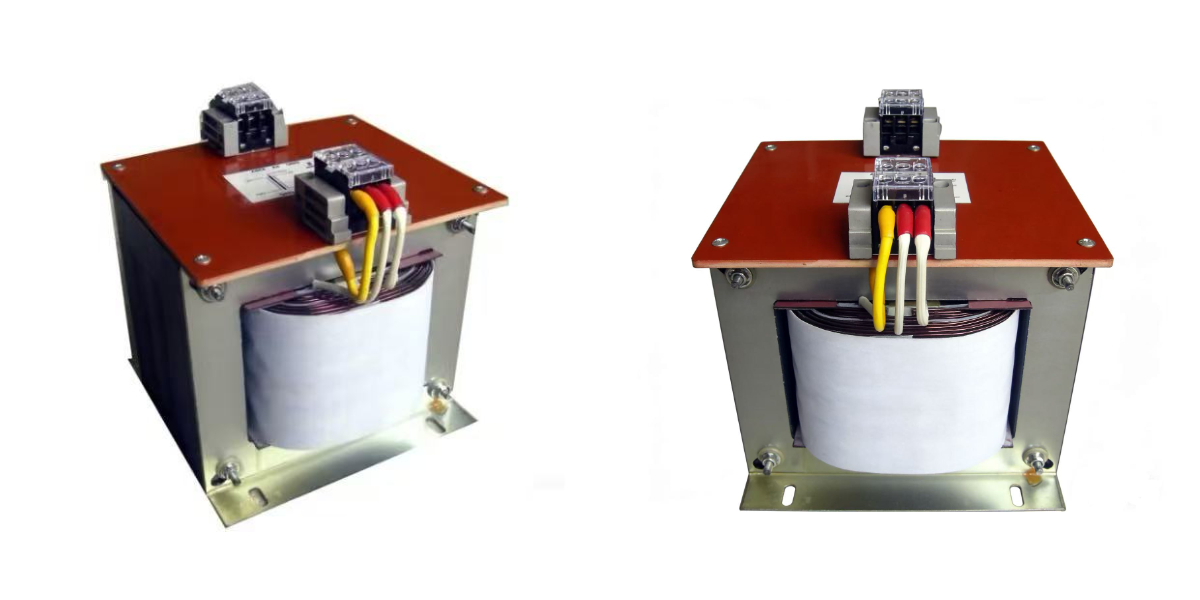

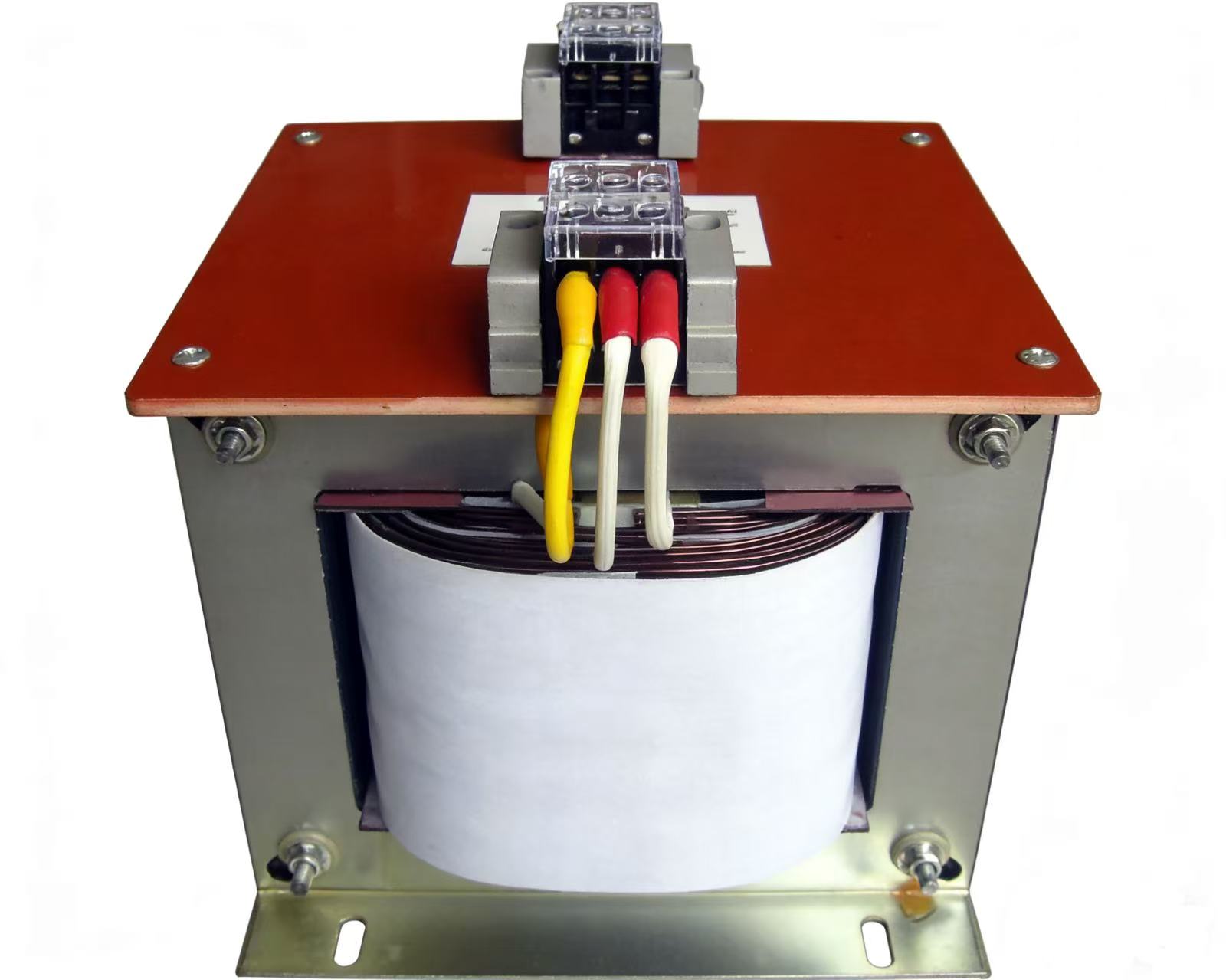

Shell-type Transformer

Core Structure

It adopts an integrated structure where the iron core and windings are enclosed in a metal shell. The windings are arranged around the iron core, and the shell serves as the main mechanical support and heat dissipation structure. The transformer is designed with fully-enclosed or semi-enclosed structure, and the iron core and windings are tightly combined to form a stable overall structure.

Core Advantages

1. High mechanical strength and excellent short-cirift impact resistance, featuring strong operational stability;

2. Compact structure with small volume and small floor area, achieving high space utilization rate;

3. Short heat dissipation path and high heat dissipation efficiency, which reduce equipment temperature rise effectively and extend service life;

4. Excellent vibration and shock resistance, suitable for transportation, installation and complex operating environments;

5. Low failure rate, reduced maintenance costs and high long-term operational reliability.

Technical Features

1. Excellent electromagnetic performance, low magnetic leakage, low power loss and remarkable energy-saving effect;

2. Uniform force on windings and mechanical stability far superior to traditional core-type transformers;

3. Compatible with various insulation and cooling modes including oil-immersed and dry-type types.
