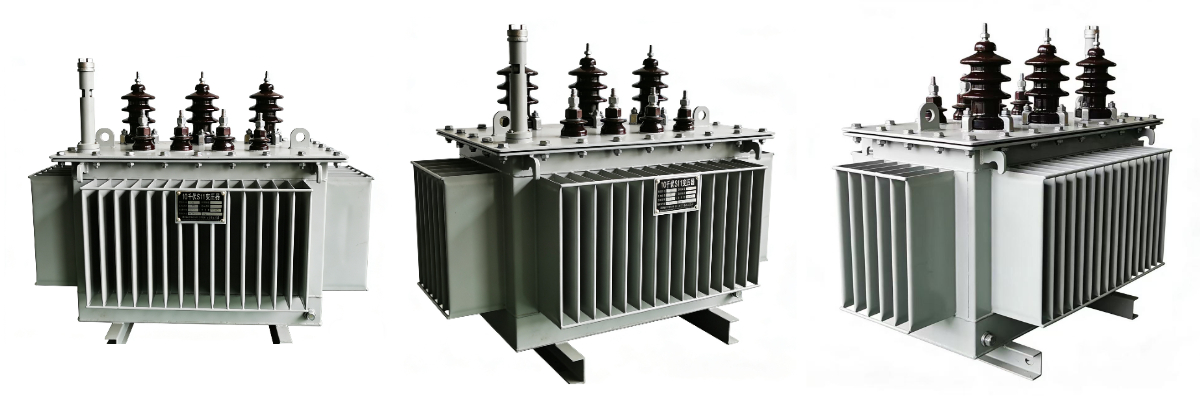

10kv erefficient transfor

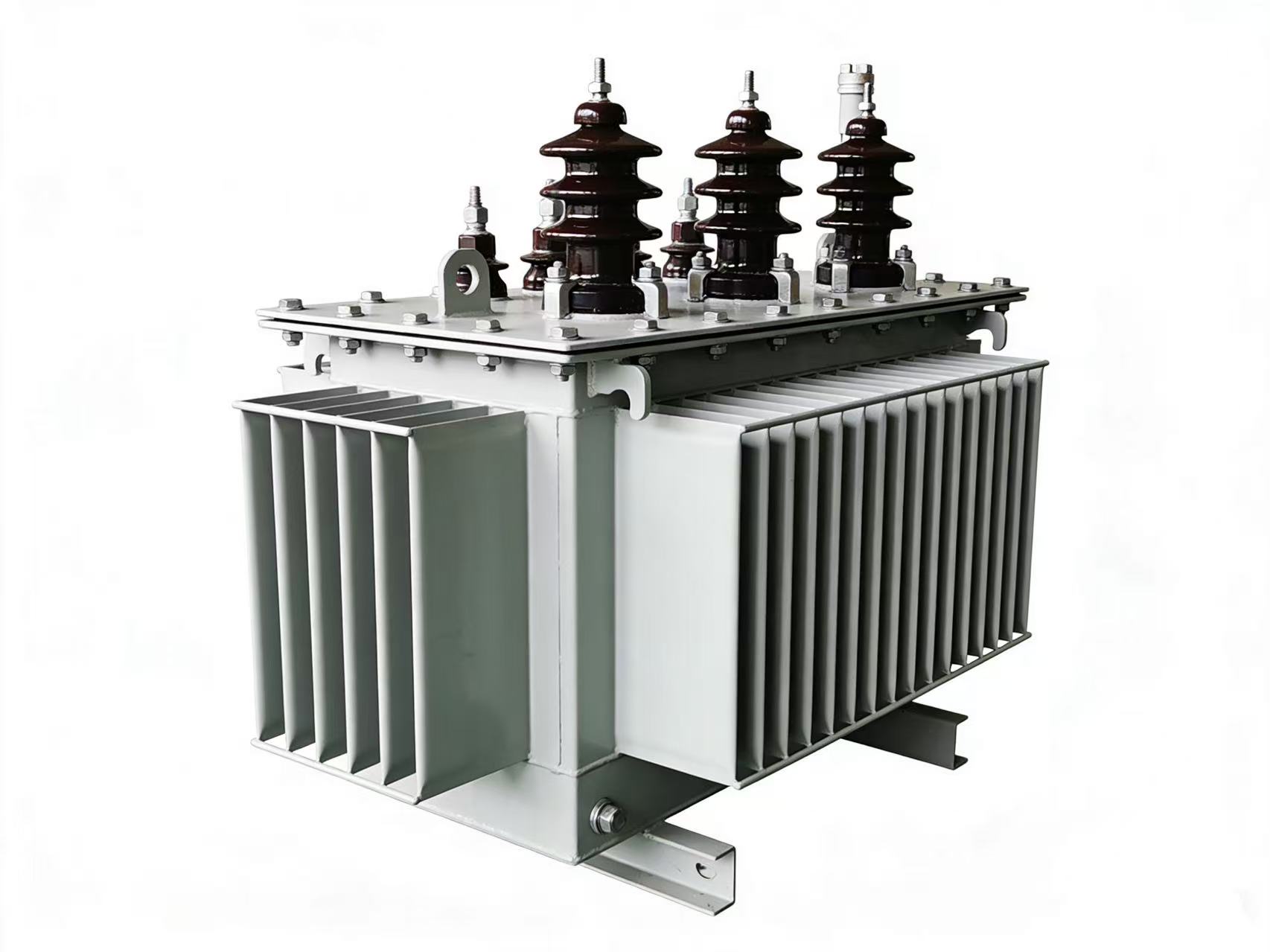

10kvS11 oil-immersed transformer product advantages
1. Ultra-low loss, more power saving
Using high magnetic conductivity silicon steel sheet, the no-load loss is significantly lower than that of S9, and the long-term operation saves electricity costs and the return on investment is fast.
2. Low operating noise
The core structure is optimized, the magnetic circuit is more reasonable, and the noise is significantly smaller, making it suitable for quiet places such as residential areas, schools, and hospitals.
3. Fully sealed, maintenance-free
Corrugated fuel tank structure, insulating oil does not contact the air, free of hanging core, less maintenance, longer service life.
4. Strong resistance to short circuit
The coil has high mechanical strength, withstands power grid shocks and load fluctuations, and operates stably with low failure rate.
5. High reliability and wide application
With mature technology and high energy efficiency, it is currently the mainstream selection for urban and rural power grids, new residential areas, and industrial and mining enterprises.
1.Product Overview

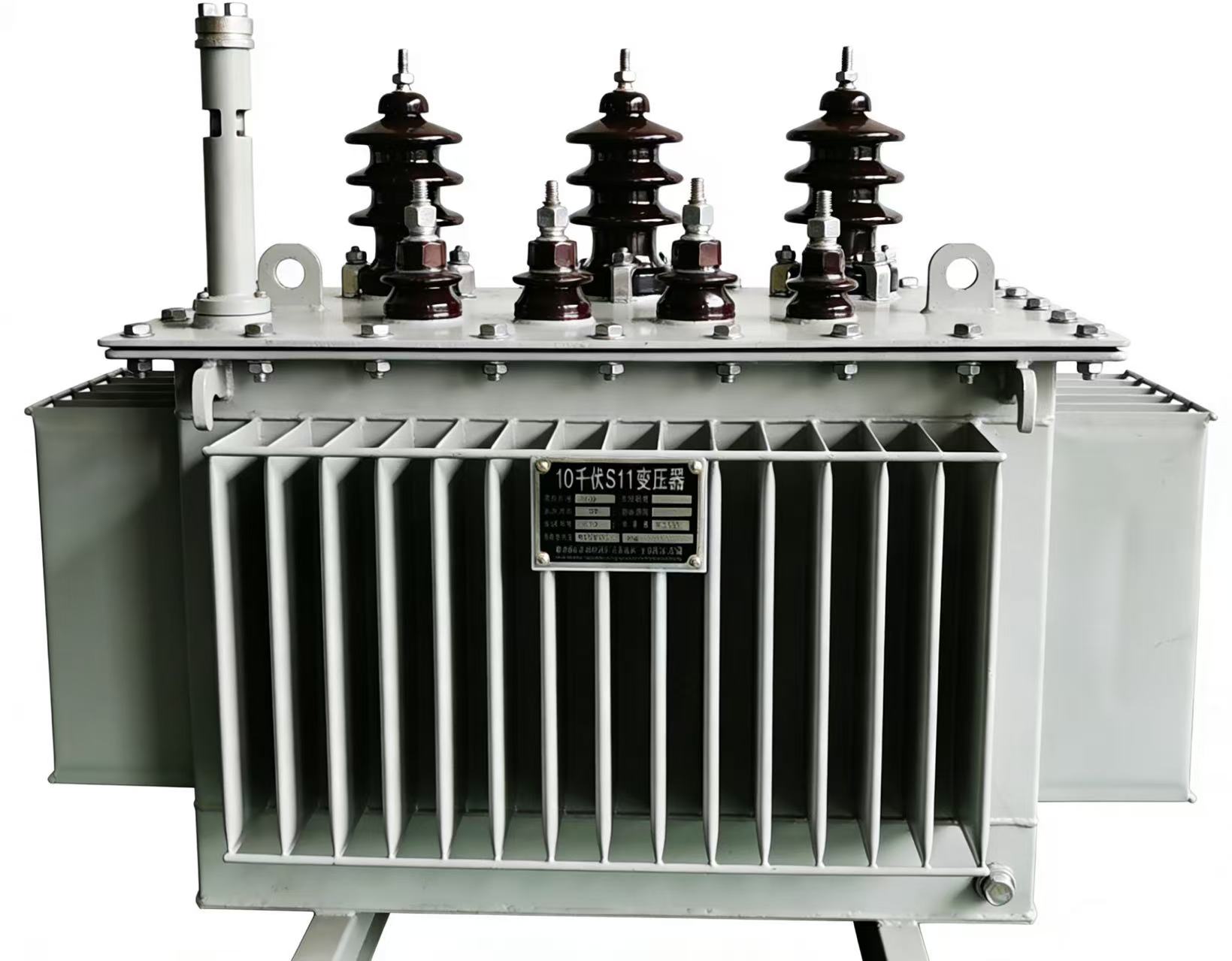

The 10kV S11 series transformer represents China's leading energy-efficient oil-immersed distribution transformer. Featuring premium cold-rolled oriented silicon steel sheets, a fully sealed design, and advanced manufacturing processes, it delivers lower losses, higher efficiency, and quieter operation compared to S9 and S10 models. Widely deployed in 10kV distribution networks for voltage conversion and power distribution, this transformer offers advantages including safety, reliability, energy efficiency, maintenance-free operation, and extended service life. It is the preferred choice for urban-rural power grids, residential communities, industrial enterprises, and infrastructure projects.
2. Technical Specifications(Customizable)
• Rated Voltage: 10kV ±2×2.5% / 0.4kV • Rated Frequency: 50Hz • Connection Group: Dyn11 • Cooling Method: ONAN oil-immersed self-cooling • Capacity Range: 30kVA to 2500kVA • Impedance Voltage: 4% • Insulation Class: Class A • Protection Type: Fully sealed corrugated oil tank • Operating Environment: -25℃ to +40℃
3. Key Features
1. Ultra-low losses with exceptional energy efficiency: No-load loss ratio reduced by approximately 30% compared to S9, enabling significant power savings during long-term operation and lower operational costs.
Low-noise operation with optimized iron core design, uniform magnetic circuit, and low noise levels, suitable for quiet environments such as residential areas, schools, and hospitals.
Fully sealed, maintenance-free structure without oil storage tank, with transformer oil isolated from air to resist oxidation and moisture, eliminating core lifting and frequent maintenance.
Strong short-circuit resistance, high mechanical strength of the coil, excellent insulation performance, and ability to withstand grid surges, ensuring stable and reliable operation.
Features long service life, low failure rate, excellent heat dissipation, corrosion resistance, and durability, with an overall lifespan exceeding 20 years and high cost-performance ratio.
Compact and easy-to-install, it occupies minimal space and is suitable for various installation methods including indoor distribution rooms, outdoor transformer boxes, and rack-mounted transformers.
4. Application Scenarios
• New construction of urban and rural power grids, as well as upgrading of aging grids • Residential communities, commercial buildings, schools, hospitals, and office buildings • Industrial power consumption in factories, mines, and industrial parks • Infrastructure such as road lighting, water conservancy projects, rail transit systems, and communication base stations • Box-type substations, temporary construction power supply, and supporting power supply for photovoltaic and wind power installations
