Product Details of ZBW Series Prefabricated Box-Type Substation

1. Product Introduction

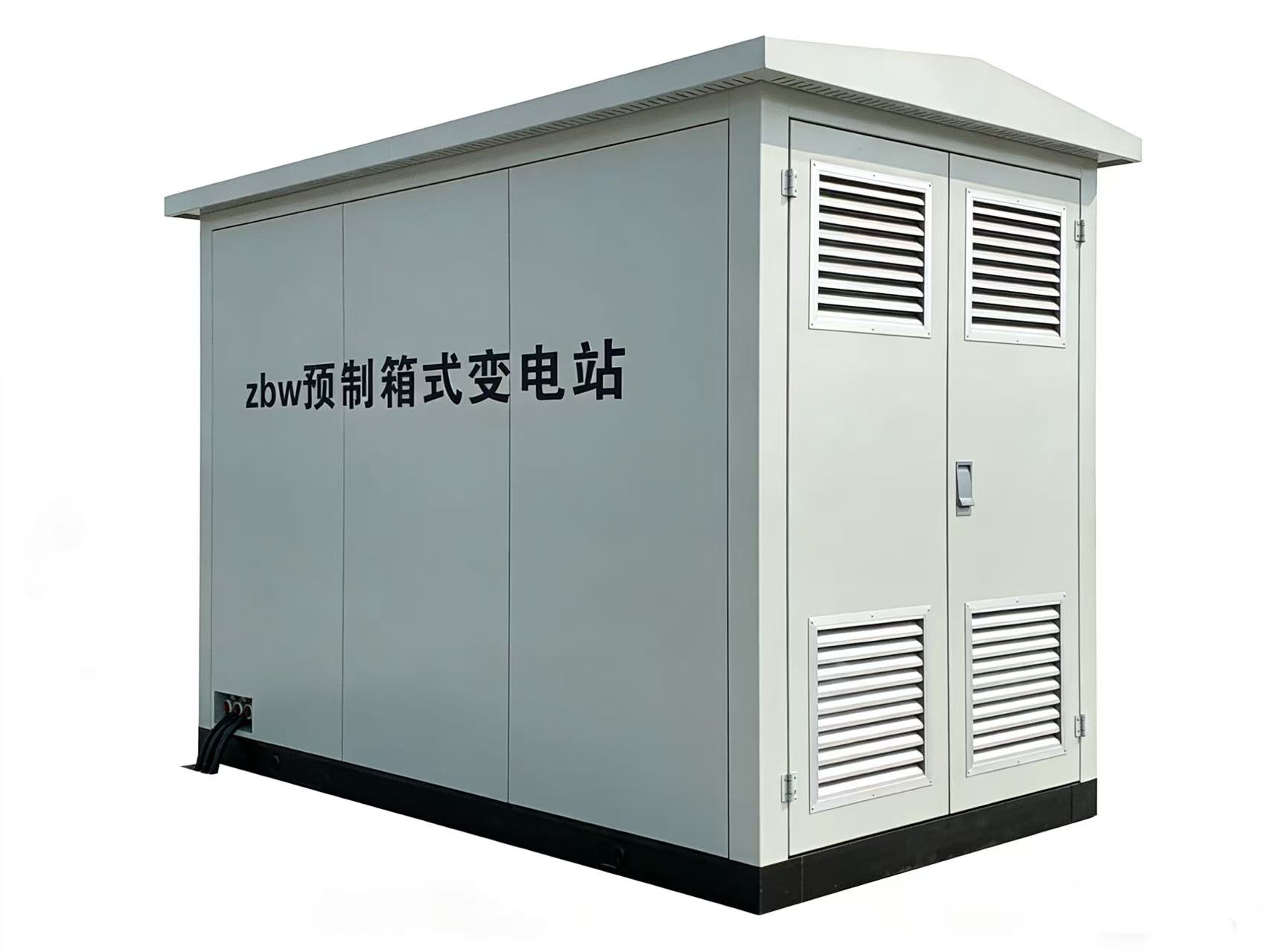

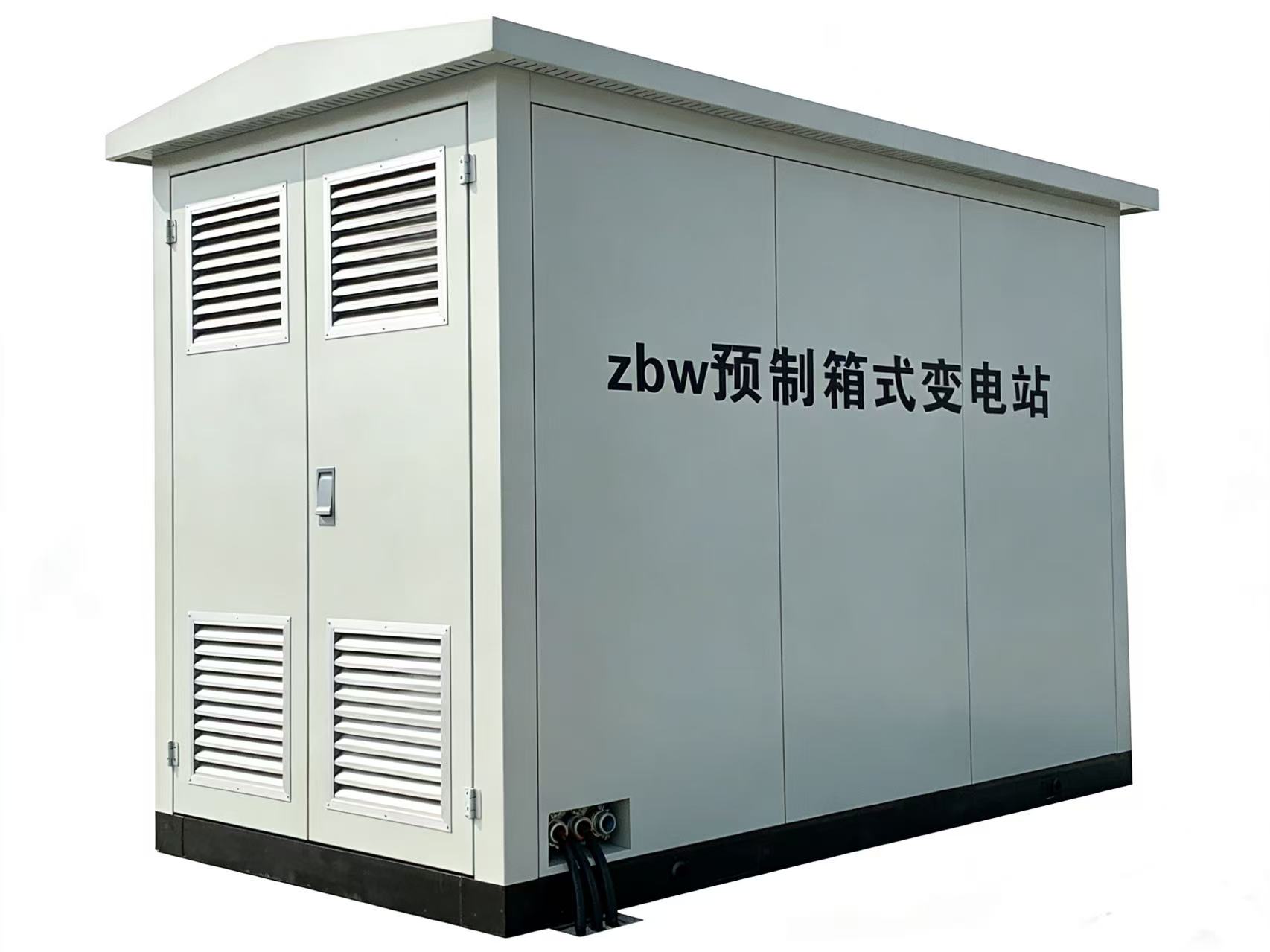

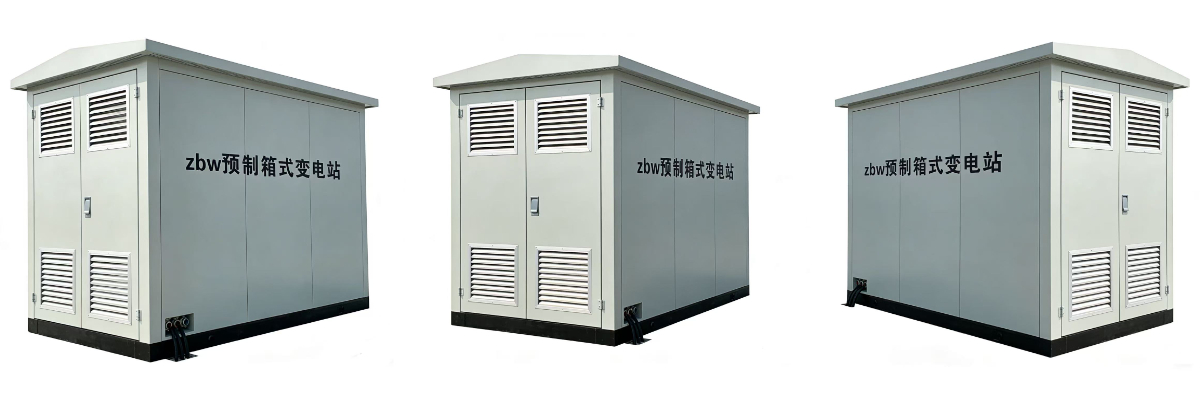

The ZBW series prefabricated box-type substation is a compact outdoor integrated power supply equipment integrating high-voltage switchgear, distribution transformer and low-voltage distribution cabinet. Adopting an integrated design, the entire equipment is fully prefabricated, wired and debugged in the factory. On site, it only needs foundation installation and cable connection to be put into use.

Featuring compact structure, safety, reliability, quick installation and strong environmental adaptability, it is widely used in urban power grids, residential quarters, industrial parks, construction sites and various outdoor power supply places, and is an ideal solution to replace traditional power distribution rooms.

2. Technical Parameters（Customizable）

• Rated Voltage: HV 10kV, LV 0.4kV

• Rated Frequency: 50Hz

• Rated Capacity: 50kVA～1600kVA

• Protection Degree: IP33～IP54

• Enclosure Material: Cold-rolled steel plate / Stainless steel / Aluminum alloy

• Connection Mode: Ring network power supply, terminal power supply, dual-power automatic switching

• Cooling Mode: Natural cooling (AN)

• Ambient Temperature: -40℃～+40℃

• Applicable Altitude: ≤1000m (plateau type customizable)

• Insulation Level: In line with the requirements of national standard GB/T 17467

3. Main Features

1. High Integration & Compact Structure

   Independent layout of three compartments (HV, transformer and LV), small overall volume and small footprint. It can be directly placed near the load center, greatly reducing line loss.

2. Factory Prefabrication & Ready-to-Use

   All assembly and commissioning are completed in the factory, with minimal on-site construction work, short installation cycle and quick power-on, significantly shortening the project period.

3. Safe, Reliable & Strong Protection

   Equipped with complete five-prevention interlock, overload, short-circuit, leakage and lightning protection. The enclosure is rainproof, dustproof, anti-corrosion and sun-proof, enabling long-term stable operation outdoors.

4. Energy-Saving, Low-Noise & Stable Operation

   Configurable with low-loss energy-saving transformers, featuring low loss, low noise and high energy efficiency, which is more economical for long-term use.

5. Maintenance-Free & Convenient Operation

   The equipment has good sealing performance, moisture-proof and anti-pollution, basically maintenance-free in daily use; the operation space is reasonable, easy for maintenance, and supports intelligent monitoring and unattended operation.

6. Flexible, Universal & Strong Expandability

   The circuit, capacity and functions can be flexibly configured according to on-site needs, and it is very convenient to move, relocate and expand.

4. Application Scenarios

• Civil buildings such as residential quarters, commercial complexes, schools, hospitals and office buildings

• Internal power supply for industrial parks, factories, mines and enterprises

• Municipal projects, road lighting, parking lots, parks and scenic spots

• Urban and rural power grid renovation, outdoor transformer stations, temporary construction power supply

• Power supply for infrastructure such as airports, ports, subways and tunnels

• Various outdoor power distribution projects with limited space and high requirements for construction period
