dry type transformer

I. Product Overview

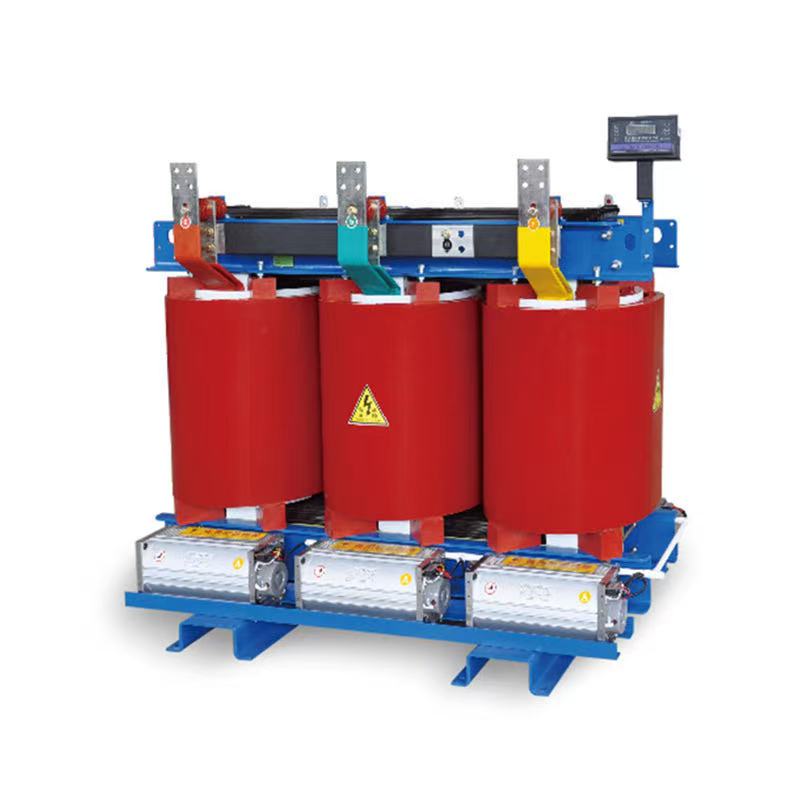

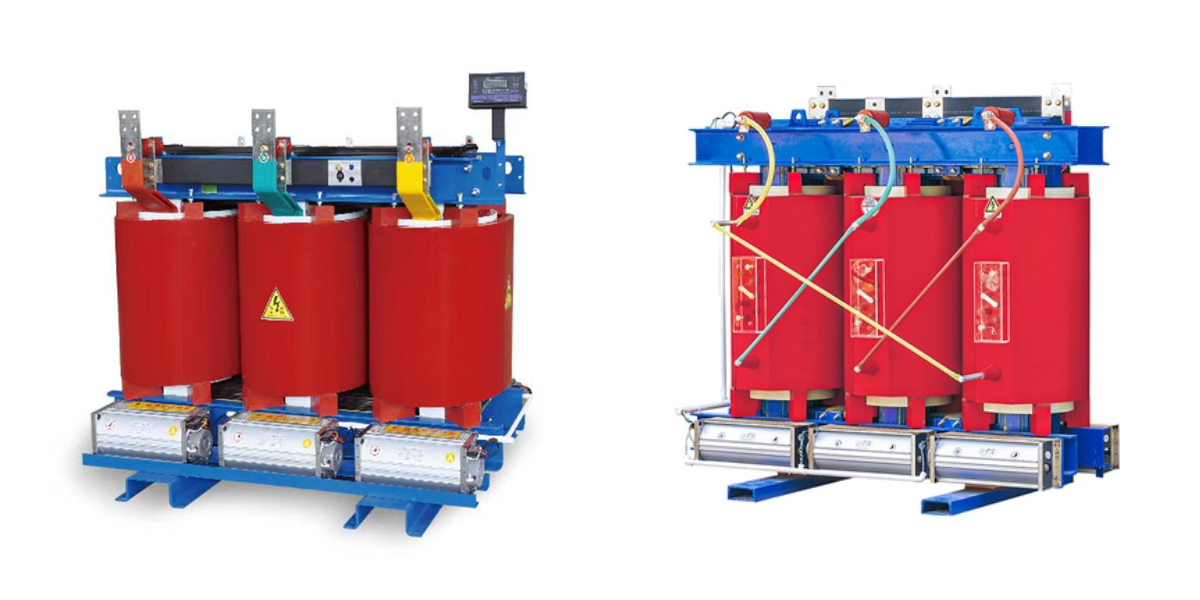

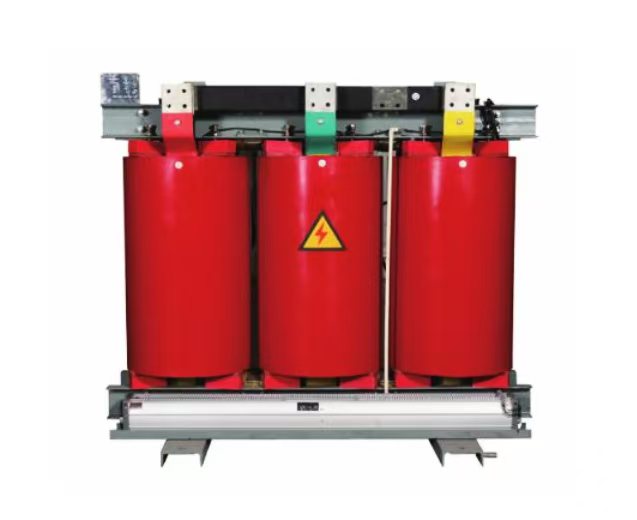

The SCB9 series is a 10kV class three-phase epoxy resin cast dry-type transformer, an energy-saving indoor power distribution product. The coils are cast with epoxy resin under vacuum, featuring oil-free, fire-resistant, explosion-proof, and environmentally friendly properties. It is suitable for places with high safety requirements such as high-rise buildings, shopping malls, hospitals, subways, factories, and data centers.

II. Structural Features

Iron Core: High-quality cold-rolled grain-oriented silicon steel sheets with 45° fully mitred joints and no perforated binding, ensuring low loss and low noise.

Windings: High-voltage coils are cast with epoxy resin under vacuum, having high mechanical strength, resistance to short circuits and impact.

Insulation: F/H class insulation, flame-retardant and self-extinguishing, non-polluting, and can be directly installed in the load center.

Cooling: Natural air cooling (AN) / forced air cooling (AF).

Protection: Can be equipped with IP20, IP30 protective enclosures, safe and reliable.

III. Product Advantages

Safety and Fire Prevention: Oil-free, non-flammable, explosion-proof, no need for oil storage and fire protection spacing.

Excellent Performance: Low loss, strong overload capacity, low temperature rise, and reliable operation.

Maintenance-free: Moisture and dust proof, no oil leakage, basically no maintenance required.

Environmentally Friendly: Low noise, energy-saving, adaptable to humid and dusty environments.

Easy Installation: Small in size, light in weight, can be arranged arbitrarily indoors.

IV. Main Technical Parameters（customizable）

Rated Voltage: 10kV/0.4kV

Rated Frequency: 50Hz

Connection Group Label: Dyn11

Impedance Voltage: 4% (conventional capacity range)

Insulation Class: Class F (assessed by Class B temperature rise)

Cooling Method: AN/AF (natural air cooling / forced air cooling)

Protection Class: IP20 / IP30 (optional)

Rated Capacity: 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500 kVA (common)

Executive Standards: GB/T 10228, GB 20052

V. Scope of Application

Indoor power distribution systems such as high-rise buildings, commercial centers, hospitals, schools, subways, airports, factories, mines, data centers, photovoltaic and wind power, etc.
