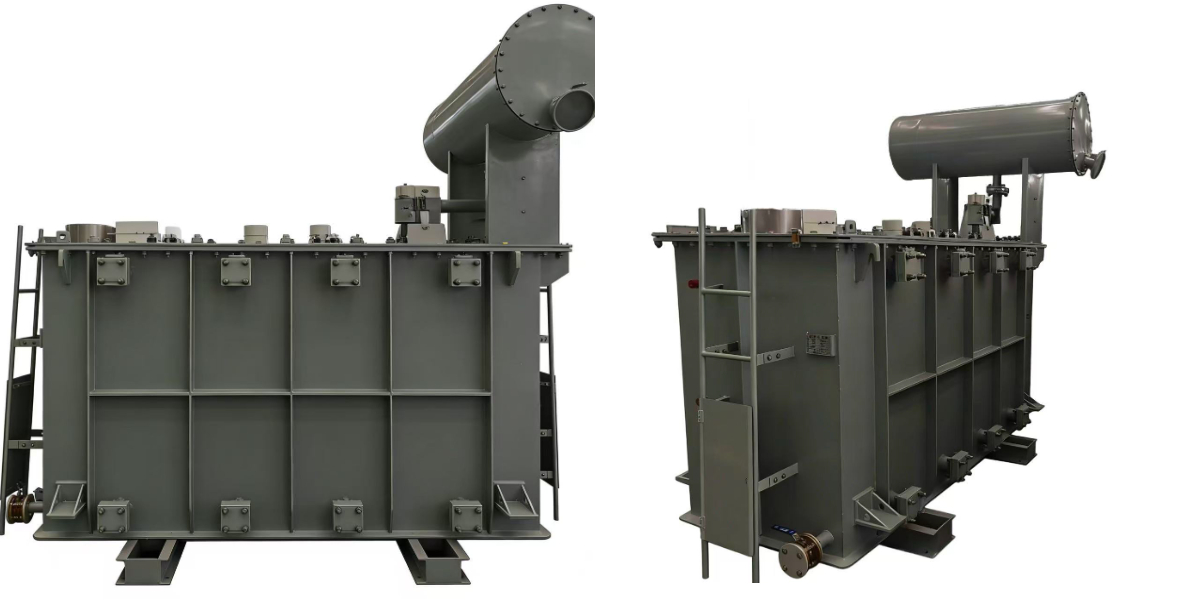

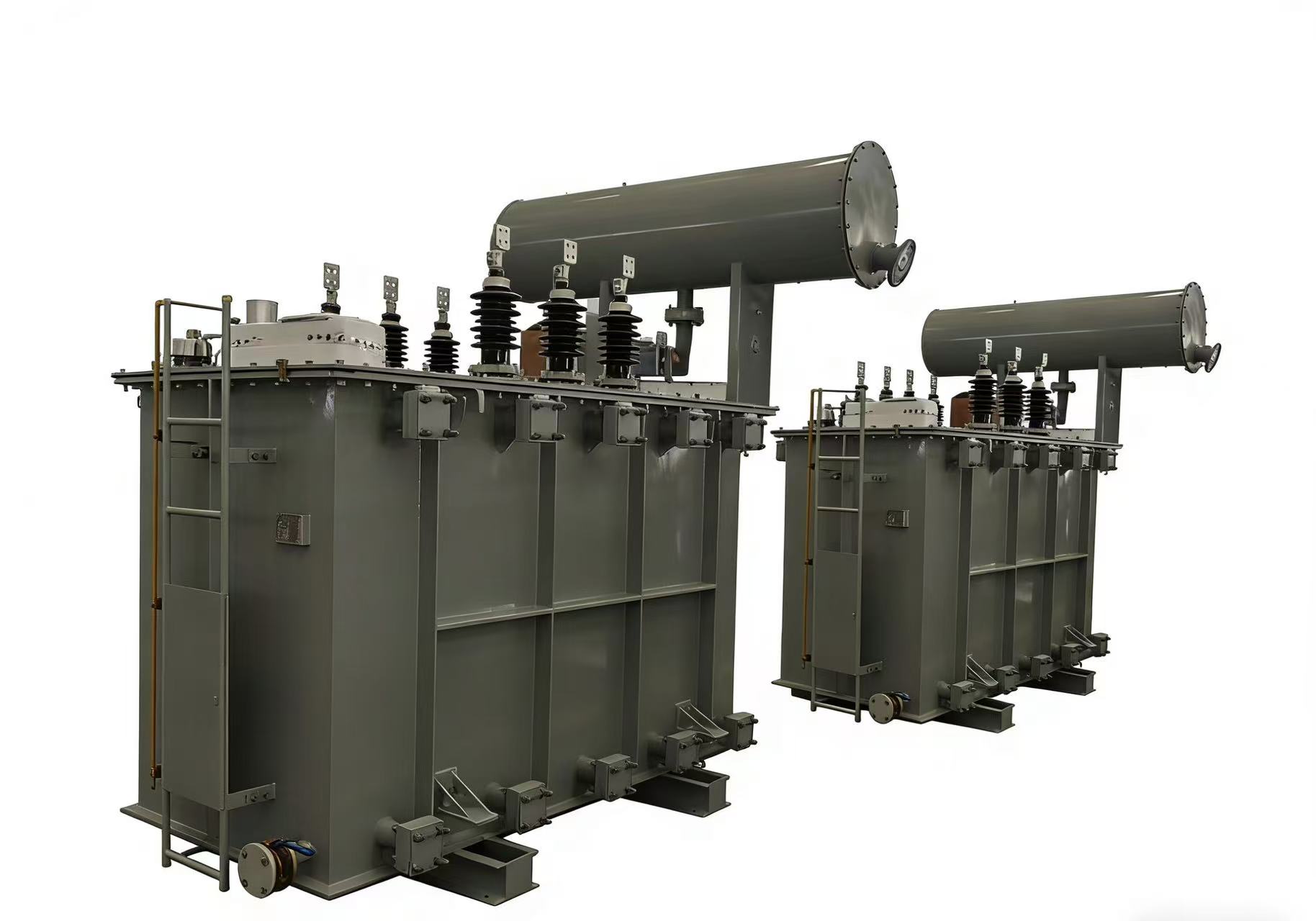

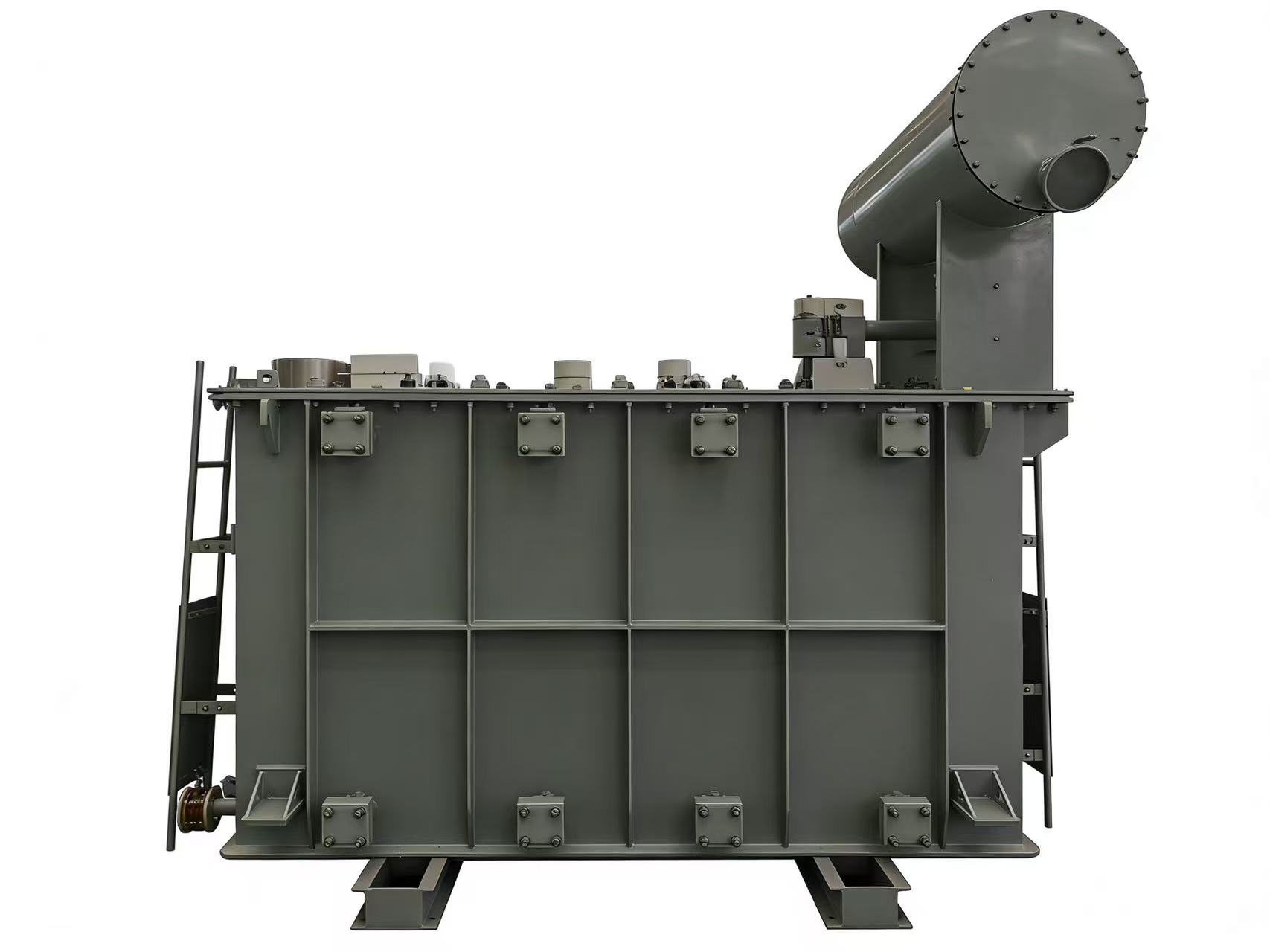

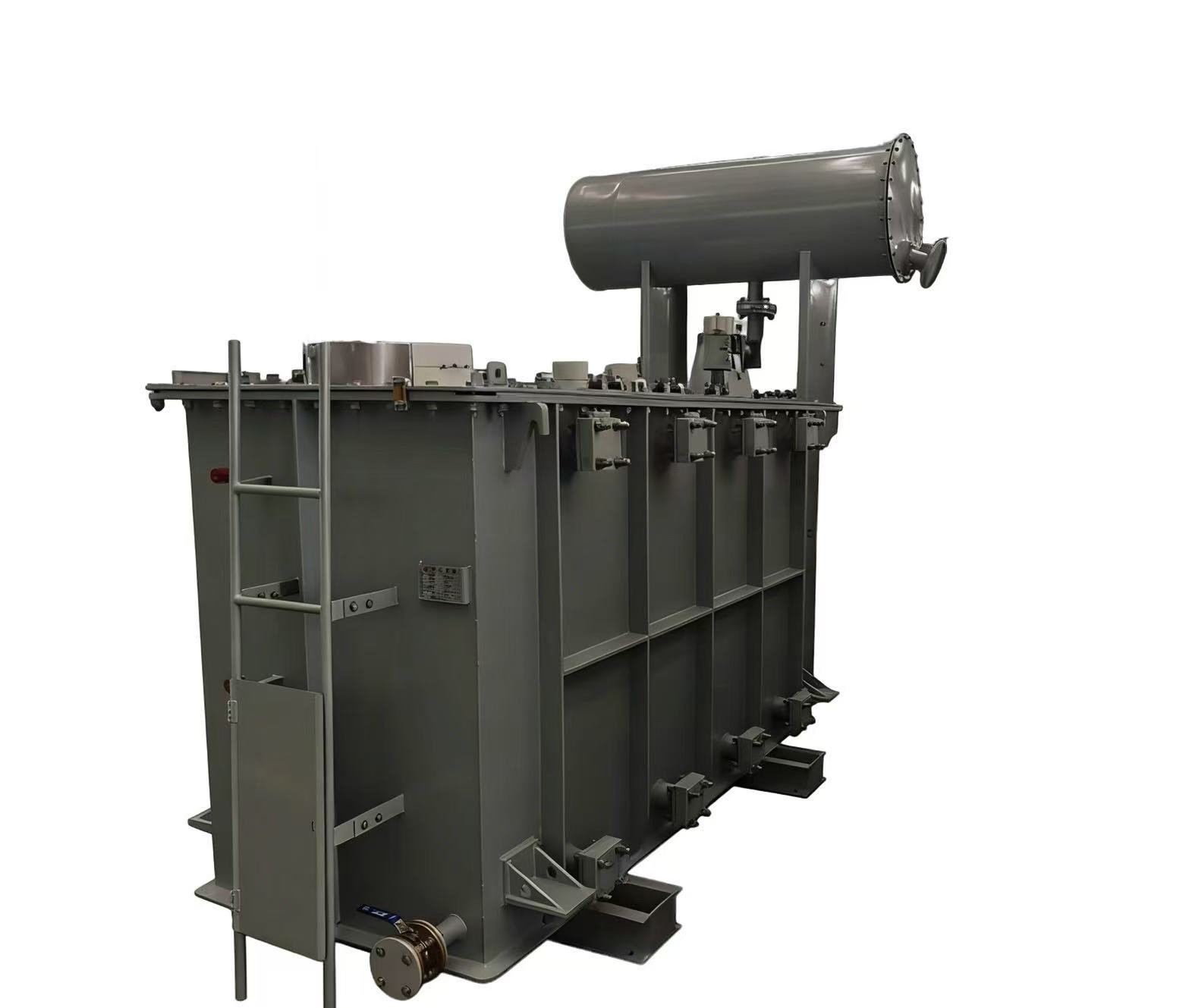

Rectifier Transformer
1.Suitable for 6/12/24-pulse rectifier systems and nonlinear impact loads in electrolysis, metallurgy and other industries.
2.High-impedance design, suppressing harmonics, limiting short-circuit current, and protecting rectifier components and backend equipment.
3.High-quality cold-rolled oriented silicon steel sheets + oxygen-free copper windings, with strong overload capacity and stable operation in harsh environments.
4.Low-loss design, superior to national standards, significantly reducing long-term operating costs.
5.Oil-immersed insulation + multiple protections (Buchholz relay, temperature monitoring, etc.), ensuring safe and reliable operation.
6.Voltage, capacity, connection group and cooling mode can be customized on demand.
Rectifier Transformer
1.Performance Advantages & Protection Configuration
Designed with a specialized high-impedance structure, this rectifier transformer can effectively suppress grid harmonics, limit short-circuit currents, and protect rectifier components such as diodes and thyristors. It supports 6-pulse, 12-pulse, and 24-pulse rectification modes, catering to diverse industrial power supply requirements. With exceptional overload capacity, it can stably withstand impact loads under harsh operating conditions. The transformer is equipped with a comprehensive set of safety protection devices, including a Buchholz relay, pressure relief valve, oil temperature indicator, winding temperature monitor, oil level gauge, and magnetic oil level indicator, realizing full-cycle monitoring and fault protection to ensure safe and stable operation. Moreover, it achieves high efficiency and energy conservation, with no-load and load losses significantly lower than both national and international standards.
2.Application Scope & Customized Services
This product is widely applied in various industrial fields requiring AC-DC conversion, mainly including non-ferrous metal smelting (electrolytic aluminum, electrolytic copper), chemical industry (electrolytic caustic soda, hydrogen production), electroplating and electrochemical processing, DC traction power supply for metro and rail transit, electric arc furnace steelmaking, as well as new energy transmission and data center power supply systems. It exhibits strong adaptability to different operating environments and can be customized for special conditions such as high altitude and low temperature. We offer flexible customization services for voltage level, rated capacity, connection group, tap range, and cooling mode (ONAN/ONAF/OFAF), fully meeting the personalized needs of global customers.
