ZGS11-10 American-style Box-type Substation Product Details

(Suitable for product manuals, technical tenders, and corporate official website product pages, balancing professionalism, practicality, and readability. It comprehensively covers the core technologies, specifications, structural highlights, and application scenarios of the ZJS11-10 American-style box-type substation, supplemented by details such as component materials, test standards, customized solutions, and safety protection details. It clearly presents product value to assist users in equipment selection, technical docking, and promotion, highlighting the core characteristics of "high integration, fully sealed and maintenance-free, compact size, convenient installation, and high cost performance", while clearly defining the differentiated advantages compared with European-style box-type substations)

I. Product Introduction

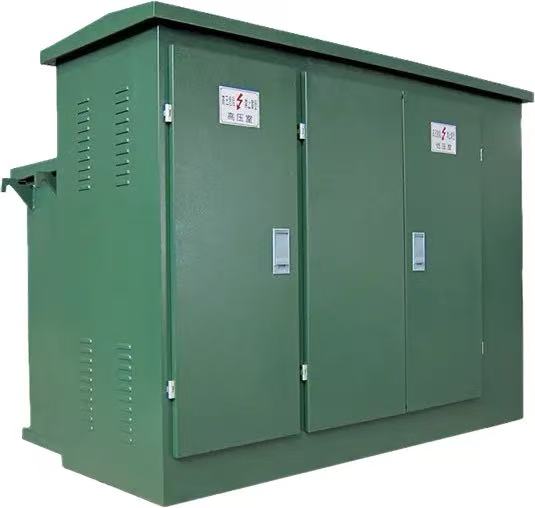

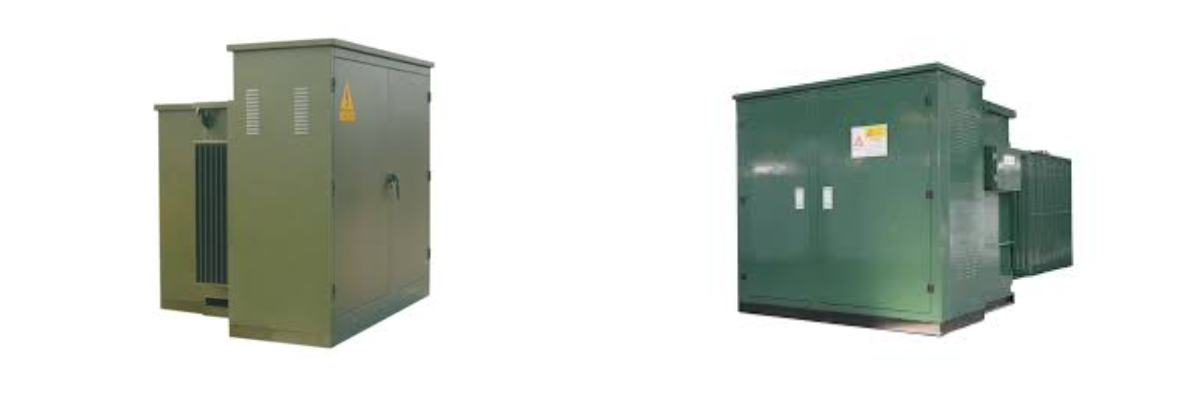

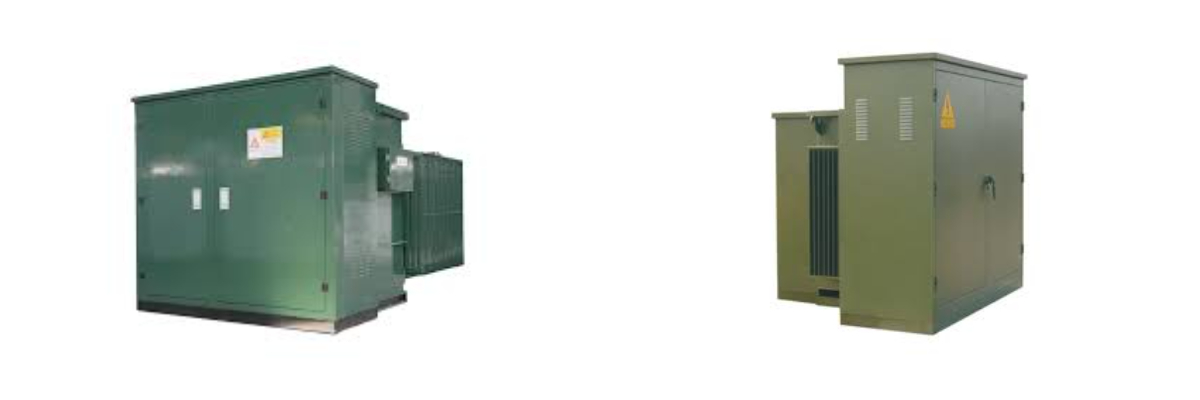

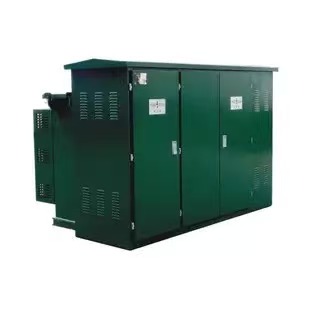

The ZGS11-10 American-style box-type substation (industry general supplementary model: ZGS11-12/0.4, adapted to 10kV distribution network systems) is a compact, fully sealed, fully insulated, and outdoor prefabricated power transformation equipment developed and designed in strict accordance with GB/T 17467-2020 High-voltage/Low-voltage Prefabricated Substations, GB/T 1094.1-2013 Power Transformers - Part 1: General, and IEC 62271-200 international standards, combined with the convenience requirements of outdoor power distribution scenarios. Its core positioning is to "replace traditional civil distribution rooms and European-style box-type substations, achieving rapid deployment, land saving, unattended operation, and long-term maintenance-free", and is widely used in 10kV distribution network terminal power supply and ring network power supply scenarios. It is the preferred equipment for urban and rural distribution network upgrading, residential supporting, industrial park power distribution, and temporary power supply.

The most prominent feature of the ZGS11-10 American-style box-type substation is its highly integrated design. Different from the "three independent compartments" structure of European-style box-type substations, it integrates core components such as high-voltage load switches, high-breaking current-limiting fuses, oil-immersed distribution transformers, low-voltage power distribution units, electric energy metering devices, and lightning protection systems into one body. Among them, high-voltage components and the transformer body share a sealed oil tank, eliminating the traditional transformer oil pillow design, adopting a fully sealed structure, and significantly reducing the overall volume and weight.

All assembly, wiring, commissioning, and testing of the product are completed in the factory in strict accordance with national and industry standards. Before leaving the factory, it must pass multiple tests such as voltage withstand test, insulation test, protection operation test, sealing test, and temperature rise test to ensure that all performance indicators of the equipment are up to standard and operate stably. On-site installation does not require complex civil construction; only simple concrete foundation pouring, overall equipment hoisting, cable connection, and grounding treatment are required for rapid commissioning, which greatly shortens the construction period and reduces construction costs and labor input.

Compared with European-style box-type substations, the ZJS11-10 American-style box-type substation has core advantages such as smaller size, lighter weight, lower cost, faster installation, more flexible layout, and stronger maintenance-free performance; compared with traditional civil distribution rooms, it covers only 1/10 to 1/5 of the land area, shortens the construction period by more than 80%, and reduces the comprehensive investment cost by more than 40%. It can effectively solve the pain points of scarce urban land resources, tight construction period, and high operation and maintenance costs. At the same time, the product adopts a fully sealed and fully insulated design, which is safe and reliable in operation, can operate stably for a long time in various harsh outdoor environments without additional protective facilities, and truly realizes "factory prefabrication, on-site plug-and-play, and long-term maintenance-free".

The product can flexibly configure ring network/terminal power supply modes, low-voltage outlet circuits, reactive power compensation devices, intelligent monitoring systems, etc., according to users' power distribution needs, adapting to personalized needs of different loads and scenarios, with a service life of more than 20 years. It is a cost-effective choice for urban and rural distribution network upgrading, residential supporting, industrial park power distribution, and temporary power supply.

II. Specifications and Parameters（customizable）

(I) General Technical Parameters

(II) Core Component Configuration Parameters

1. Transformer Configuration

2. High-voltage Side Configuration

3. Low-voltage Side Configuration

III. Main Features

1. High Integration, Compact Size, Minimal Land Occupation, and Flexible Layout

The ZJS11-10 American-style box-type substation adopts an integrated design of "high-voltage + transformer shared oil tank, low-voltage independent compartment", which is the core highlight distinguishing it from European-style box-type substations, completely solving the pain points of large land occupation and inconvenient layout of traditional substations and European-style box-type substations:

Extreme Integration and Compact Size: High-voltage load switches, fuses, and transformer body share a sealed oil tank, eliminating the traditional transformer oil pillow with a minimalist structure. The volume is only 1/3 to 1/2 of that of European-style box-type substations with the same capacity, and the weight is reduced by more than 40%, greatly saving land area, transportation, and hoisting costs.

Small Land Occupation and Adaptation to Narrow Sites: The floor area is only 1/10 to 1/5 of that of traditional civil distribution rooms. Taking a 315kVA model as an example, the floor area is only 3-4㎡. It can be directly installed in narrow spaces such as residential corners, roadside, green belts, and factory edges, without large-scale civil construction, greatly saving land acquisition and infrastructure costs.

Flexible Layout and Close to Load Center: It can be flexibly arranged near the power load center, shortening the low-voltage power supply distance, reducing line loss, improving power supply quality, and reducing the consumption of low-voltage cables to further save investment costs; it can be installed singly or in parallel, adapting to different terrain and space requirements.

2. Fully Sealed and Fully Insulated, Safe and Reliable, Eliminating Potential Safety Hazards

The product adopts a fully sealed and fully insulated design, eliminating potential safety hazards such as electric shock, leakage, and moisture from the structure, with a high safety factor for operation and adaptation to various outdoor scenarios:

Fully Sealed Oil Tank, Maintenance-free and Leak-proof: The transformer oil tank adopts a fully sealed corrugated structure with high-quality sealing rubber strips, completely isolating air and moisture, avoiding oxidation, moisture, and leakage of insulating oil, and realizing long-term maintenance-free without regular oil replenishment, oil filtration, and maintenance.

Fully Insulated Design, No Exposed Live Parts: All high-voltage parts are immersed in oil and sealed, the low-voltage compartment is of sealed design, and high-voltage cable connectors adopt elbow fully insulated connectors, which are touchable and pluggable with no exposed live parts, eliminating electric shock risk, and operators can safely approach the equipment for inspection.

Comprehensive Protection and Adaptation to Harsh Environments: The enclosure protection grade is up to IP33 and above, which can effectively prevent rain, dust, solid foreign objects, and water splash. Combined with the fully sealed structure, it can operate stably for a long time in harsh outdoor environments such as humidity, dust, and rain without additional protective sheds.

3. Factory Integrated Pre-assembly, Extremely Fast On-site Installation, Greatly Shortening Construction Period

The product takes "factory prefabrication, on-site rapid deployment" as its core advantage, completely solving the pain points of long construction period and cumbersome process of traditional civil substations and European-style box-type substations:

Full-process Factory Prefabrication: All core components (high-voltage switches, fuses, transformers, low-voltage distribution, metering, etc.) are selected, assembled, wired, commissioned, and tested in the factory in strict accordance with national and industry standards, ensuring that all performance indicators of the equipment are up to standard and operate stably when leaving the factory. No on-site secondary commissioning is required, realizing true "factory prefabrication, on-site plug-and-play".

Simplified and Efficient On-site Installation: On-site only requires simple concrete foundation pouring (2-3 days), overall equipment hoisting (1 day), cable connection, and grounding treatment (1-2 days). Power transmission and commissioning can be completed in 1-3 days at the fastest, with a construction period shortened by more than 80% compared with traditional civil substations (3-6 months) and European-style box-type substations (7-15 days), greatly reducing on-site construction costs, labor costs, and management costs.

Convenient Transportation and Hoisting: The equipment is small in size and light in weight, which can be transported by ordinary trucks without large-scale transportation equipment; the hoisting difficulty is low, and small cranes can complete hoisting, suitable for installation in remote areas and narrow sites.

4. Dual-fuse Protection, Comprehensive Protection, Stable and Reliable Operation

The product is equipped with a complete protection system, focusing on optimizing the high-voltage side protection design, which can quickly isolate faults, ensure the safety of equipment and power grid, and maximize operation stability:

Dual-fuse Full-range Protection: The high-voltage side adopts a dual protection scheme of "plug-in fuse (main protection) + backup current-limiting fuse (backup protection)". The plug-in fuse is responsible for protecting internal faults and light overload of the transformer, and the backup current-limiting fuse is responsible for protecting short circuits and severe overload. It has a comprehensive protection range and reliable action, can quickly cut off faulty circuits, avoid fault expansion, and does not affect the operation of the upper-level power grid.

Multiple Auxiliary Protections: Equipped with oil-immersed zinc oxide arresters to effectively resist lightning impact and protect high-voltage components and transformers; the transformer is equipped with an oil temperature monitoring device to monitor oil temperature in real time and send an alarm when overheating to avoid equipment damage; the low-voltage side is equipped with overload, short-circuit, undervoltage, and overvoltage protection to protect electrical equipment safety in all aspects.

Strong Short-circuit Resistance: The transformer adopts high-quality oxygen-free copper windings and high-permeability silicon steel sheets, combined with a reasonable structural design, with short-circuit impedance meeting standards, strong short-circuit resistance, and can withstand sudden short-circuit impact to avoid transformer damage.

5. Low Loss, Low Noise, Green and Energy-saving, Adapting to Sensitive Scenarios

The product focuses on energy saving and environmental protection, optimizes loss and noise design, balances energy efficiency and environmental friendliness, and can adapt to sensitive scenarios such as residential areas, schools, and hospitals:

Low Loss and Energy-saving: Adopts S11 series low-loss oil-immersed transformers, with high-permeability grain-oriented silicon steel sheets for iron cores and high-quality oxygen-free copper for windings. The no-load loss and load loss are far lower than national standards, saving a lot of electric energy during long-term operation, complying with national energy-saving policies, and reducing users' power consumption costs; optional S13/S20 Grade 1 energy efficiency transformers have better energy-saving effects.

Low Noise Operation: Optimizes the structure of transformer iron cores and windings with noise reduction design, with an operation noise of ≤50dB, which can be directly installed in noise-sensitive areas such as residential areas, schools, hospitals, and parks without disturbing residents or damaging the environment, meeting environmental protection requirements.

Environmentally Friendly and Pollution-free: Adopts 25# transformer oil or high-flashpoint environmentally friendly insulating oil, which is leakage-free and pollution-free, complying with environmental protection standards; the overall sealing of the equipment is good with no dust or oil leakage, having no impact on the surrounding environment.

6. Maintenance-free Design, Long Service Life, and Extremely Low Operation and Maintenance Costs

The product is designed around "maintenance-free and long service life" from structural design to component selection, greatly reducing operation and maintenance costs and adapting to unattended scenarios:

Fully Sealed and Maintenance-free: The fully sealed oil tank prevents oxidation and moisture of insulating oil, eliminating the need for regular oil replenishment, filtration, and maintenance; high-voltage components are immersed in oil and sealed with no exposed parts, no need for regular cleaning and maintenance; the overall structure is well sealed with few fault points. Daily operation and maintenance only require regular inspections (cleaning the enclosure, checking wiring, viewing meter data), without professional personnel on duty.

Long Service Life: The transformer body life is ≥25 years, the enclosure life is ≥30 years, and the overall design service life is ≥20 years; core components (transformers, load switches, fuses) are selected from well-known brands with stable performance and strong durability, reducing equipment replacement costs, and the long-term operation comprehensive cost is extremely low.

Convenient Maintenance: The low-voltage compartment is equipped with an independent operation door with standardized internal wiring and sufficient maintenance space, which can quickly troubleshoot and replace components; high-voltage cable connectors are pluggable with load, and the overall power supply does not need to be interrupted during maintenance, greatly reducing power outage losses.

7. Flexible Power Supply Mode, Strong Adaptability, and Adaptation to Multiple Scenarios

The product supports multiple power supply modes and customized design, which can accurately match the personalized needs of different scenarios and loads with a wide range of applications:

Flexible Power Supply Mode: Supports two modes of ring network power supply and terminal power supply, which can be seamlessly connected to the urban distribution network, adapting to different distribution topology needs such as urban and rural distribution networks, industrial parks, and residential areas; optional dual-power switching configuration ensures power supply continuity, suitable for scenarios with high requirements for power supply reliability (e.g., hospitals, data centers).

Strong Environmental Adaptability: It can operate stably for a long time in the temperature range of -25℃～+45℃. Optional high and low temperature type and high-altitude type equipment are available, adapting to special environments such as severe cold in northern areas, hot in southern areas, and high altitudes; the enclosure can be made of stainless steel material, adapting to corrosive environments such as coastal, humid, and chemical areas with strong salt fog and corrosion resistance.

Customized Adaptation: Customizable transformer capacity, low-voltage outlet circuits, reactive power compensation capacity, protection grade, enclosure material, etc., according to user needs; adaptable to different voltage levels (6kV/10kV), and customizable explosion-proof equipment to expand the application boundary of the product.

8. High Comprehensive Cost Performance, Fast Return on Investment, and Policy Compliance

The product balances economy and practicality, with low comprehensive investment cost and fast return on investment, complying with national policies on distribution network upgrading and energy-saving transformation:

Low Comprehensive Cost: The equipment itself is cheaper than European-style box-type substations with the same capacity, and also saves civil engineering, land, cables, labor, and maintenance. The overall investment is more than 40% lower than that of traditional civil distribution rooms and more than 20% lower than that of European-style box-type substations, greatly reducing users' investment costs.

Fast Return on Investment: Short construction period and fast commissioning can quickly realize power supply and generate benefits; the low-loss design can save electric energy for a long time, and the maintenance-free design can reduce operation and maintenance costs, with a short payback period, suitable for projects with high cost performance requirements such as urban and rural distribution network transformation and residential supporting.

Policy Adaptation: Complying with national policies on distribution network upgrading, energy-saving transformation, and green and low-carbon development, equipped with low-loss transformers as standard, it can apply for local energy-saving subsidies and distribution network transformation subsidies, helping users reduce project costs and practice the concept of green and low-carbon development.

IV. Application Scenarios

The ZJS11-10 American-style box-type substation, with the core advantages of "high integration, compact size, convenient installation, fully sealed and maintenance-free, safe and reliable, and high cost performance", is widely used in various 10kV outdoor power distribution scenarios, covering fields such as urban and rural distribution networks, industrial production, commercial buildings, public facilities, and temporary power. It adapts to different environmental conditions and load requirements and is an ideal equipment for distribution network construction and transformation:

1. Urban and Rural Distribution Network (Core Application Scenario)

Suitable for urban and rural distribution network upgrading, old residential area transformation, and rural power network improvement, solving the pain points of traditional substations such as large land occupation, long construction period, and high operation and maintenance costs:

Urban Distribution Network: For the transformation of old urban residential areas, urban villages, and new urban areas, the ZJS11-10 has a small size and small land occupation, which can be installed in residential corners, roadside, and green belts, close to the load center to improve power supply quality; the appearance is simple and can be customized in color to integrate into the urban landscape without damaging the environment; the maintenance-free feature reduces municipal operation and maintenance costs and adapts to urban unattended power distribution needs.

Rural Distribution Network: For decentralized load power supply in rural towns, mountainous areas, breeding areas, and irrigation areas, the equipment has a small size and flexible installation, adapting to rural narrow sites and harsh outdoor environments, solving the problems of "low voltage and unstable power supply" in rural areas; convenient transportation and hoisting can quickly replace old transformers to improve power supply reliability; the maintenance-free design reduces the input of rural operation and maintenance personnel and adapts to unattended scenarios.

Urban-rural Fringe: For power distribution of new houses, shops, and small enterprises in the urban-rural fringe with tight construction periods and limited sites, the ZJS11-10 can quickly meet power supply needs with its rapid deployment feature, and can flexibly expand capacity in the later stage to adapt to regional development needs; the low comprehensive cost is suitable for the cost performance requirements of urban-rural fringe distribution network construction.

2. Industrial Production

Suitable for outdoor power distribution needs of various industrial enterprises and industrial parks, especially for scenarios with tight construction periods, narrow sites, and moderate loads:

Industrial Parks: For the new construction and expansion of industrial parks, providing terminal power supply for park enterprises, multiple box-type substations can be flexibly arranged according to the load distribution of the park to realize zonal power supply and improve power supply reliability; the compact size can be installed beside park roads and around workshops without occupying production space; the maintenance-free design reduces park operation and maintenance costs; customizable ring network power supply schemes adapt to the distribution network topology needs of the park.

Small and Medium-sized Industrial Enterprises: For outdoor power distribution of small and medium-sized enterprises such as mechanical manufacturing, electronic processing, food processing, and textile printing and dyeing with moderate loads, the ZJS11-10 has high cost performance and fast installation, which can quickly meet production power consumption needs; high protection grade adapts to the dusty and rainy environment in industrial parks with stable operation and reduced production interruption time.

Temporary Power Distribution in Mines and Construction Sites: For temporary production power in mines and construction sites with short construction periods and unfixed sites, the equipment is small in size and light in weight, which can be quickly hoisted and relocated, and reused after the project is completed to reduce investment costs; comprehensive protection adapts to harsh environments such as dust and humidity in mines and construction sites.

3. Commercial and Civil Buildings

Suitable for outdoor power distribution needs of commercial complexes, residential quarters, office buildings, hotels, hospitals, etc., balancing safety, convenience, aesthetics, and environmental protection:

Residential Quarters: For outdoor power distribution of high-rise residential buildings, resettlement houses, and villas, the ZJS11-10 is compact and low-noise, which can be installed in residential green belts and distribution rooms without affecting residents' lives; the fully sealed and fully insulated design is safe and reliable, eliminating electric shock hazards; the appearance can be customized in color to integrate into the residential landscape without damaging the environment; the maintenance-free design reduces property operation and maintenance costs.

Commercial Complexes: For shopping malls, supermarkets, hotels, office buildings, etc., with moderate power loads and high requirements for power supply reliability, the ZJS11-10 can flexibly configure dual-power supply to ensure normal commercial operation; the compact size can be installed in narrow sites around commercial buildings without affecting the commercial atmosphere; optional intelligent monitoring is convenient for operation and maintenance personnel to grasp the power distribution status in real time.

Public Buildings: For hospitals, schools, libraries, stadiums, etc., with stable power loads and high requirements for power supply safety and environmental protection, the ZJS11-10 is low-noise, environmentally friendly and pollution-free, adapting to crowded scenarios; safe and reliable with complete protection, it can ensure the normal operation of medical equipment, teaching equipment, sports facilities, etc., avoiding the impact of power outages on public services.

4. Public Facilities and Transportation

Meet the outdoor power distribution needs of public facilities and transportation hubs to ensure the normal operation of public services and transportation:

Transportation Hubs: For outdoor power distribution of subways, high-speed railway stations, airports, long-distance bus stations, ports, etc., (e.g., lighting, dispatching systems, charging piles), the ZJS11-10 is compact and flexible in installation, which can be installed in narrow sites around transportation hubs without affecting traffic operation; high protection grade and reliable operation avoid operation interruptions caused by voltage fluctuations; the maintenance-free design improves operation and maintenance efficiency.

Municipal Facilities: For outdoor power distribution of sewage treatment plants, garbage treatment plants, parks, scenic spots, municipal road lighting, urban squares, etc., the equipment adapts to humid and dusty environments, and its maintenance-free feature reduces municipal operation and maintenance costs; it can be installed in green belts of parks and scenic spots with customizable appearance to integrate into the landscape without damaging the environment; providing stable power supply for lighting, water pumps, monitoring, and other equipment.

5. Temporary and Emergency Power

Suitable for temporary construction, emergency power supply, and other scenarios to meet short-term and rapid power demand, with reusability and reduced investment costs:

Construction Sites: For temporary power in building construction with short construction periods and unfixed sites, the ZJS11-10 can be quickly hoisted and relocated to provide stable power for construction machinery, temporary lighting, and office power consumption; it can be moved as a whole to other construction sites for reuse after the project is completed, reducing repeated investment costs; small size and light weight facilitate transportation and hoisting, adapting to the complex environment of construction sites.

Emergency Power Supply: For temporary power supply after natural disasters (floods, typhoons, earthquakes) and large-scale activities (exhibitions, events, temple fairs), the rapid deployment feature of the ZJS11-10 can quickly restore power supply to meet emergency needs; comprehensive protection adapts to extreme environments with stable operation, providing reliable power supply guarantee for emergency work.

Temporary Commercial Scenarios: For short-term power demand such as temporary fairs, outdoor exhibitions, and temporary shops, the equipment has fast installation and small size, which can quickly meet power supply needs without complex construction; low comprehensive cost is suitable for short-term power projects.

6. Special Scenario Applications

Through customized design, expand the application boundary of the product, adapt to various special working conditions, and meet the personalized needs of different scenarios:

Coastal Areas: Customized stainless steel 304/316 enclosure, salt fog and corrosion resistance, protection grade upgraded to IP44, adapting to coastal distribution network scenarios and prolonging equipment service life; anti-corrosion treatment of internal components to avoid equipment failure caused by sea breeze and humidity.

Northern Severe Cold Areas: Customized high and low temperature type equipment, equipped with heating devices and insulation layers, tolerating extreme low temperature of -35℃ to ensure stable operation in winter, avoiding equipment failure caused by low-temperature icing and insulation degradation.

High-altitude Areas: Customized high-altitude type equipment, optimized insulation design, adapting to high-altitude low-pressure environments of ≤4000m, avoiding insulation breakdown, and ensuring stable power supply of distribution networks in high-altitude areas.

Scenarios with High Fire Protection Requirements: Select high-flashpoint environmentally friendly insulating oil, customized fire-proof equipment, no oil leakage risk, adapting to crowded places with high fire protection requirements such as residential areas, commercial areas, and hospitals.

Flammable and Explosive Scenarios: Customized explosion-proof equipment, complying with GB 3836 standards, adapting to flammable and explosive scenarios such as chemical plants, mines, and gas stations, eliminating safety accidents caused by electrical sparks.
