Ventilated Dry Type Transformer
1.Meets Level 3 energy efficiency in accordance with the new national standard GB 20052-2024, applicable for new construction projects.
2.Dry-type and oil-free design, featuring flame retardant, fireproof, explosion-proof and eco-friendly performance.
3.Lower power losses, more energy-saving than SCB10 transformers.
4.Excellent short-circuit withstand capability, moisture-proof and dust-proof, ensuring stable and reliable operation.
5.Maintenance-free design with long service life.
6.Low operating noise, ideal for residential areas, hospitals, shopping malls and other noise-sensitive places.
7.Easy and flexible installation, suitable for indoor spaces, basements and load centers.

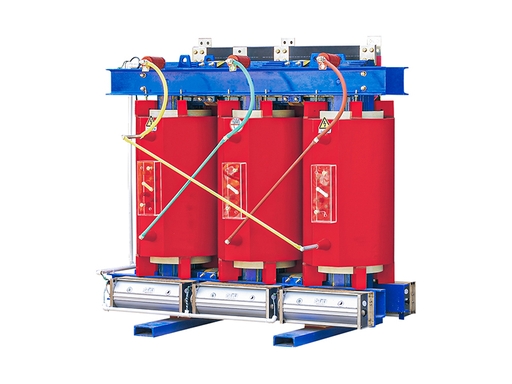

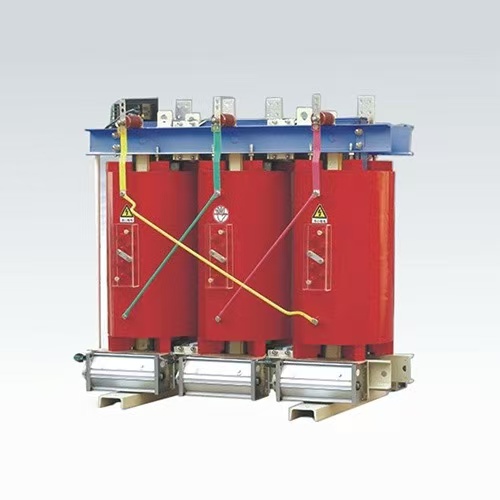

Product Details of SCB12 Series Epoxy Resin Cast Dry-Type Transformer
1. Product Introduction
The SCB12 series is a 10kV three-phase energy-saving epoxy resin cast dry-type transformer. It adopts high-permeability silicon steel core and high-strength copper windings molded by vacuum casting. The transformer is oil-free, fireproof and eco-friendly.
It complies with GB 20052-2024 and reaches Level 3 energy efficiency. Featuring energy saving, low loss, high safety, reliability and maintenance-free operation, it is widely used in indoor power distribution places with high requirements for fire protection, moisture resistance and safety.
2. Technical Parameters(Customizable)
Rated Capacity: 30kVA～2500kVA
Rated Voltage: 10kV/0.4kV
Frequency: 50Hz
Phase: Three-phase
Connection Group: Dyn11, Yyn0
Tap Regulation: Off-circuit tap adjustment ±2×2.5%
Insulation Class: Class F
Cooling Mode: AN/AF (Natural Air Cooling / Forced Air Cooling)
Protection Degree: IP20, IP30, IP40 (optional)
Energy Efficiency Level: Level 3 (GB 20052-2024)
Application Environment: Indoor, -25℃～+45℃

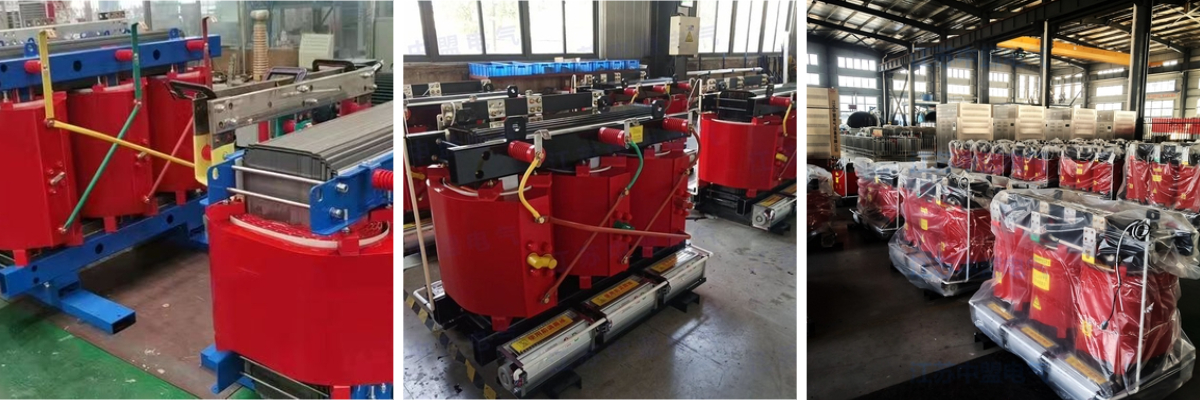

![ventilated dry type transformer]( "ventilated dry type transformer")
3. Main Features
Energy Saving and Low Loss, Compliant with Latest Standard
Its no-load loss and load loss are significantly lower than those of SCB10, providing better power-saving effect in long-term operation and meeting energy efficiency requirements for new construction projects.
Dry-type and Oil-free, Fireproof and Explosion-proof
With epoxy resin casting structure, the transformer is flame-retardant and self-extinguishing, free of oil leakage and fire risks. It can be safely installed indoors, in basements and load centers.
Excellent Short-Circuit Withstand Capability
Windings feature high mechanical strength and reliable insulation performance, with strong resistance to impact and lightning stroke, ensuring stable and reliable operation.
Moisture-proof and Dust-proof, Strong Adaptability
It can operate stably in humid and dusty environments. No pre-drying is needed before restart after shutdown.
Maintenance-free and Long Service Life
Oil-free structure avoids leakage and daily oil maintenance. It has low operation cost and long service life.
Low Noise, Quiet Operation
Optimized core and structure design bring lower noise, making it ideal for residential areas, hospitals, schools and other noise-sensitive places.
Compact Size and Easy Installation
No oil pool or fire wall is needed. It supports direct floor installation with small footprint and convenient construction.
4. Applications
High-rise buildings, residential quarters, commercial complexes, office buildings
Hospitals, schools, airports, subways, stations, data centers
Industrial parks, factories, power distribution rooms, basement substations
Shopping malls, hotels, municipal projects, key fire-safety units
Indoor power distribution projects with high requirements for fire protection, moisture resistance and safety
